Die Punching Machines

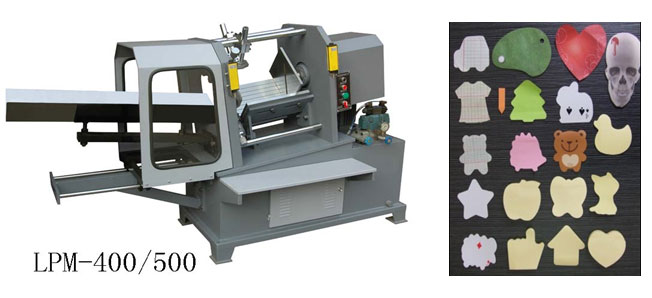

Hydraulic Trademark Die Punching Machine

LPM Label punching machine is suitable for the production of labels, playing cards, aluminium plastic, New year card, note book, envelopes of any design of size with an average production of about 900000 production of high precision hourly. This machine adopts hydraulic pressure system. With a push-cube self-adjusting to every position of the “V” hold where the pack is positioned in order to obtain a homogeneous precision and distribution of the paper, the working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium production. The working process is completely stability. The die cutting products surface is smooth, and the size is unified and regular with high precision.
Note: the quality of paper products and die are in great relationship. Our company’s die is after completion of the process of the six high-quality die, characterized by high accuracy, high hardness, wear-resistant, Durable.

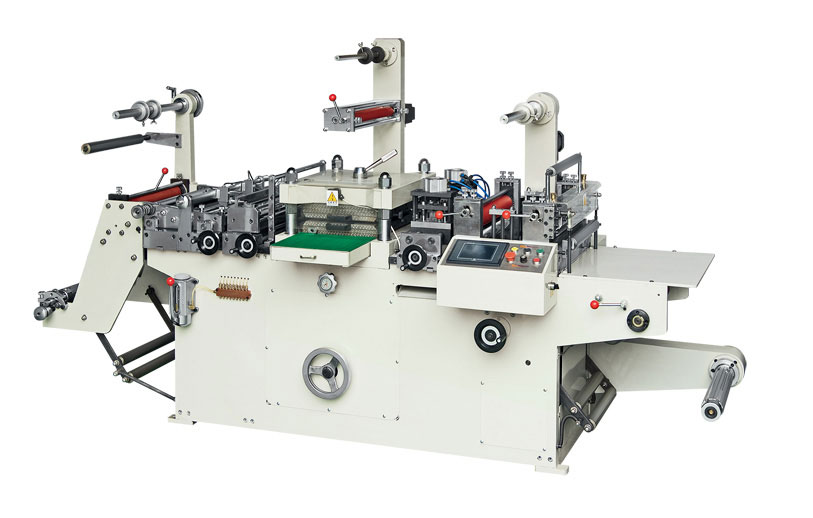

Y-MQ-350 Die Cutting Machine

Main Technical Parameter:
Model
Y-MQ-350 (new)
Die cutting speed:
20-180times/min
Max. Putting diameter
450mm
Max. Web width
320mm
Max. Die cutting width:
300mm
Max. Die cutting length
350mm
Total power:
2.5kw
Power supply voltage:
220v±10%
Machine weight
About l500kg
Dimensions
2600x950x1400mm

Characteristics:

This is a kind of flat-bed die cutting machine with high precision. The paper-going is controlled by servo motor. Three photoelectric eyes do the web-guiding job. die cutting, laminating, waste rewinding, paper sheeting or rewwinding can be finished in the process, the machine is applicable to die cut self adhesive labels, dacron film labels and laser anti-false labels, it is an ideal auxiliary of flexo printing machine, screen printing machine, relief printing machine and so on.

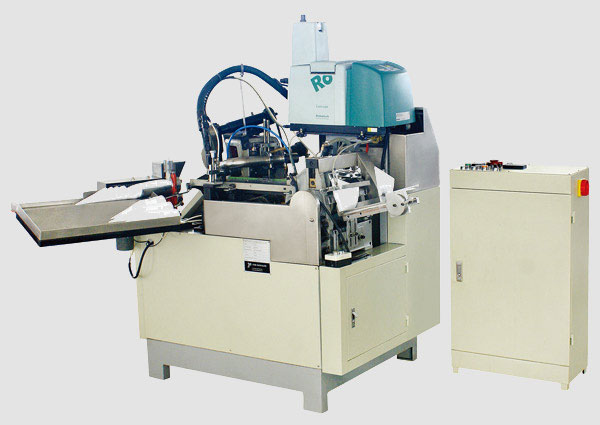

Ice Cream Paper Cone Forming Machine

Ice Cream Paper Cone Forming Machine has a suction nozzle, which sucks the printed and shaped paper from the shelf and then puts the paper onto the delivery chains, which delivery the paper into the forming mould. In this procedure, the paper will be coated with Heat Melt Adhesive, whose position, whose length and whose weight can be adjusted without stopping the machine if needed. The finished cones will be blown into the collecting device, counted, gathered and transferred automatically.

Main Technical Parameter

1.100mm
2. 255mm
3. 15°-28°
4. Fastest 200pcs/min
1.The lowest height: 100 mm
2.The highest height: 255 mm
3.Angle:15°-28°
4.Other models can be customized
STANDARD FITTING:
1.complete electric-controlled case, including segment and non-segment speed regulating.
2. Vacuum device and air-condensing device
3. Heat melt adhesive device.
4. Products piling device.
5. Fin refusing collecting device.
6. a kit of forming mould.
7. Ten fin knives.
