Intermittent Rotary

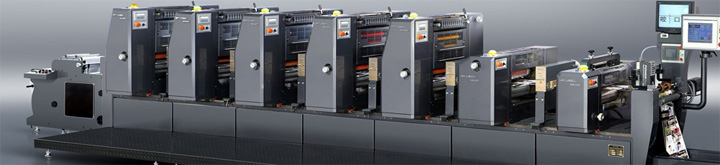

HX-330 Intermittent Label Offset Printing Machine is the high-tech equipment with high quality, high automatic and high reliability. It is designed with full consideration of the convenince for the operator . The machine adopts PS intermittence printing, which is the most ideal machine for many printing company to print high-level labels.

Parameter:
Model
HX-330
Speed
50-180m/min
Max. Web width
330mm
Max. Printing width
320mm
Max. Printing length
350mm
Max. Unwind diameter
800mm
Max. Rewind diameter
600mm
Overall dimension
9500*2000*1700
Single unit power
8KW
Power voltage
380V/3phase
Full loading rate
≤ 50%
Weight
10000KGS

1. Use cone, triple race bearings to make sure the high quality and service life of the machine..
2. Firm gear cylinder structure can play perfect network reproducibility.
3. New ink fountain partition structure, easier to adjust the ink, reducing printing time and paper waste
4. None stop adjusting to left and right, up and down, make the register more easier.
5. Max. printing area is 310*350mm. Die cutting station, cold stamping and hot stamping can be optional.
6. Imported full pneumatic control of the pressure system, fully guarantees the reliability of the machine. It adapts second pressure method to close the pressure for printing after full balance of water and ink from the print cylinder and the blanket cylinder to reduce the printing wastage.
7. The intelligent control system and the touch control computer make the simpler operation and real-time display of various fault signals available, greatly reducing checking and repairing time
8. The whole control system adopts the latest famous Germany REXROTH microcomputer servo control and operation system, featuring stable and correct material pulling, free exchange of printing rollers and rapid, convenient and simple operation. Every machine unit is driven by independent servo motor and the whole machine adopts 15servo motors (six-color machines) in total, guaranteeing high precision overprinting in high speed rotation.

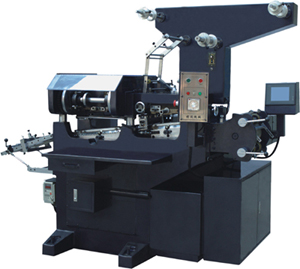

Flatbed Label Printing Machine

parameters of Letterpress Slanting high-speed auto number control label printing machine
Model YT-X210 YT-X250 YT-X280
Max printing area(mm) 210*300 240*380 280*450
Two-colours 200*145 240*185 280*220
Three-colours 200*90 240*125 180*145
Four-colours 200*70 240*90 280*105
Five-colours 200*5 240*70 280*80
Gold Stamping Area(mm) 200*150 240*200 270*250
Die cutting(mm) 200*150 250*220 270*300
Max paper feeding width(mm) 220 260 290
Max bit(information) 180(90) 220(999) 250(999)
Min line(mm) 3 3 3
Printing Speed 12000 12000 12000
Machine dimension(mm) 2100*1200*1800 2400*1250*1800 2650*1300*1900
Weight of Letterpress Machine(kg) 2100 2700 3000
Voltage/power of Letterpress Machine 220W/3.5KW 220W/8KW 220W/8KW

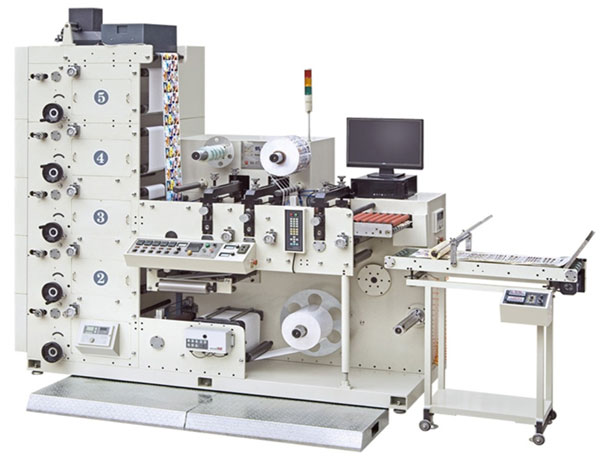

Automatic Flexo Label Printer

1. One Manual mounting device

2. One anilox roller for each group

3. Three sets (15pcs) printing rollers

4. Printing both sides at the same time (with turn bar at front)

5. With the lamination station

6. One unwinding tension controller (Mitsubishi Japan)

7. One rewinding tension controller (Mitsubishi Japan)

8. One rotary die cutting station

9. One sheeting station with conveyor

10. One web guiding

Main technical parameter:

Model

RY320-5D

Printing speed

60m/min

Printing color

5colors

Max. Web width

320mm

Max. Printing width

310mm

Max. Unwinding diameter

600mm

Max. Rewinding diameter

550mm

Printing girth

175-320mm

Precision of chromatography

±0.10mm

Dimensions

3000*1100*3000(mm)

Machine weight

About 3500kg
